高清晰度電視系統測試卡

時間:2017-02-27 ?? 熱度:808

品牌:DNP/Sine Image
型號:ITE
尺寸:透射式272×153mm、反射式512×288mm
比例:16:9
類型:透射式、反射式可選

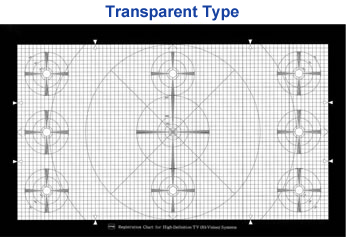

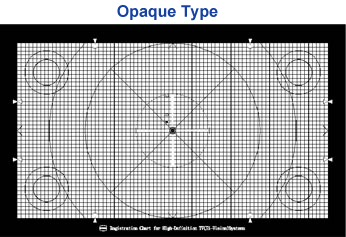

透射式測試圖卡 反射式測試圖卡

簡介

高清晰度電視系統測試卡用于電視系統需要的高精度定位測試以及HDTV需要的高分辨率測量。

測試卡由水平和垂直間距為h/45的直線和直徑為√2h, h, 5h/12, 以及 h/4的圓組成包含400TV到1600TV的條紋。

尺寸


? 有效面積 外形尺寸
透射式 272×153 310×200
反射式 512×288 570×350

This Test Chart is used for registration of TV systems which needs high-accuracy registration and high resolution needed by HDTV.

Horizontal and vertical spacing in line is h/45 and the diameters of the circles are √2h, h, 5h/12, and h/4 in the chart which consists of 400TV to 1600TV of fringes.

Sizes of effective area and outer shape of refection test chart are indicated in below table.



? Effective Area Outer Size
Transparent Type 272×153 310×200
Opaque Type 512×288 570×350
